Why RCD Protection Installation Matters More Than Ever
Electrical safety in UK homes has changed dramatically. Older fuse boards often lack the fast-acting protection that modern living demands, and that gap is where accidents happen. RCD protection installation sits at the heart of closing it, and this guide from MDS Electrical explains exactly why it matters, what the regulations require, and what to expect from the work.
An RCD, or residual current device, is a safety switch that cuts the power within milliseconds when it detects current leaking to earth. That leak is what causes shocks and fires. The Health and Safety Executive guide to electrical safety treats these devices as a core layer of protection in any property.
Here is the key point most homeowners miss: an RCD does not replace a fuse or circuit breaker. It adds a different kind of protection on top. Below, we break down the benefits, the rules, the testing routine, and the installation process so you can decide what your property actually needs.
What Is an RCD and How Does It Work?
An RCD is a mechanical safety switch that monitors the current flowing through live and neutral wires. If the difference between them exceeds a set threshold, typically 30 milliamps, the device trips and disconnects the circuit. That threshold is chosen because it sits below the level likely to cause serious harm to a person.
The mechanism is simple once you picture it:
- Current flows out through the live wire and back through the neutral
- Both should match at all times
- Any mismatch means current is leaking somewhere, often through a person or a fault
- The RCD spots the mismatch and cuts power in a fraction of a second
That speed is the whole point. A fuse or breaker protects cables from overload. An RCD protects people from earth faults. They do different jobs, and a safe installation needs both.
The Core Benefits of RCD Protection Installation
The benefits of RCD protection installation come down to two things: it saves lives and it reduces fire risk. Everything else, from compliance to peace of mind, follows from those.
Protection Against Electric Shock
A working RCD limits the time a person is exposed to a dangerous current. If someone touches a live part or a faulty appliance leaks to earth, the device trips before the shock becomes lethal. This matters most in wet areas such as kitchens, bathrooms, and outdoor sockets, where the body’s resistance drops and the danger rises.
Reduced Risk of Electrical Fires
Leaking current can arc and overheat at joints and terminals. Over time, that heat ignites surrounding material. An RCD catches the leak early and disconnects the supply, which removes the energy source before a fire can take hold. Many electrical fires start from faults that a working RCD would have caught.
A tripping RCD is not a nuisance to be silenced. If a device keeps tripping, it is telling you a fault exists. Replacing it with a plain breaker or taping it on removes the protection and leaves the fault live.
RCD vs MCB: What’s the Difference and Why You Need Both
An RCD protects people from earth faults. An MCB, or miniature circuit breaker, protects wiring from overload and short circuits. They are not interchangeable, and a compliant board uses both.
The two devices answer different questions:
- MCB: is too much current flowing through this cable?
- RCD: is current escaping where it should not?
A circuit with only an MCB can still kill. A circuit with only an RCD can still overheat and burn. Together they cover both risks. This is why modern consumer units combine MCBs with an RCD, or use RCBOs, which put both functions into a single device.
| Device | Protects Against | Typical Threshold | Where It Fits |
|---|---|---|---|
| MCB | Overload and short circuit | Rated current of the cable | Each circuit |
| RCD | Earth leakage and shock | 30mA for socket circuits | Groups of circuits or whole board |
| RCBO | Both of the above | 30mA plus cable rating | Single circuit, combined |
RCD Installation Requirements You Need to Know
RCD protection is not optional in most modern work. The wiring regulations, published as BS 7671 by the Institution of Engineering and Technology, require it for socket circuits, circuits in bathrooms, and most outdoor installations. The IET guidance on BS 7671 sets out the current requirements, and any competent electrician works to that standard.
In practice, this means:
- New socket circuits need 30mA RCD protection
- Cables buried in walls at shallow depth need RCD cover
- Bathroom and outdoor circuits need it without exception
- Landlords need a satisfactory EICR, and missing RCD protection is a common finding
If your board has no RCD at all, an upgrade is usually the sensible route. A qualified electrician can advise whether a new consumer unit or a smaller change fits your property.
Ask for the RCD test results in writing when the work is done. A good electrician will record the trip time and the test button result, and hand you the certificate. If someone cannot produce that, the job is not finished.
RCD Testing Frequency: Keeping Your Protection Reliable

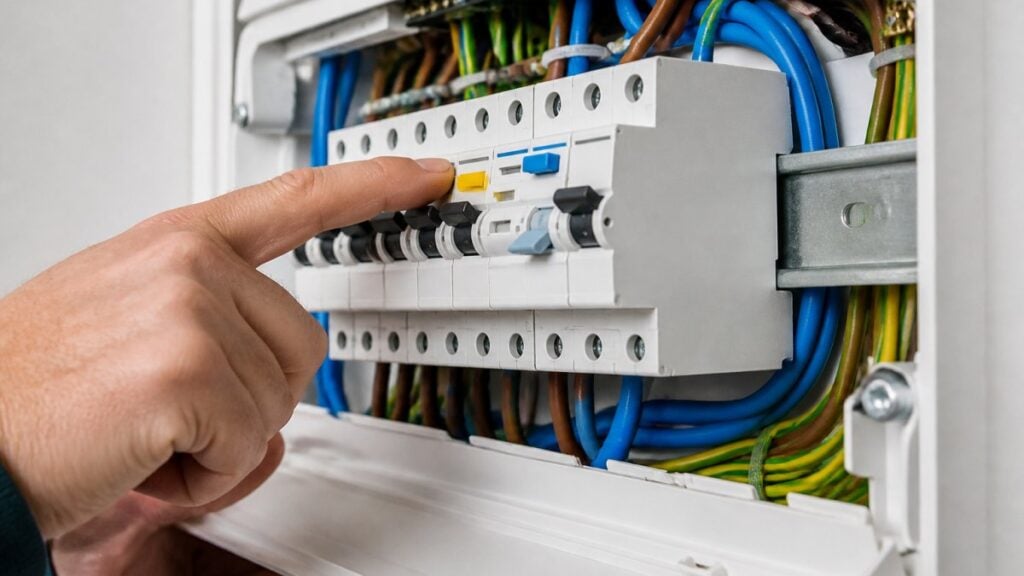

RCDs are mechanical devices, and mechanical devices fail. Testing is how you find out before an accident does. The guidance is straightforward: press the test button every three months, and have the trip time measured by an electrician at each periodic inspection.
Your routine should look like this:
- Every three months: press the test button on the device and confirm it trips
- Every year (rented property): arrange the landlord safety check
- Every five years (or on change of tenancy): book a full EICR
- After any trip: check what caused it before resetting
The test button checks the mechanism, not the trip time. Only an electrician with a tester can confirm the device still trips within the required window. A device that passes the button test can still be slow.
The Installation Process: What to Expect

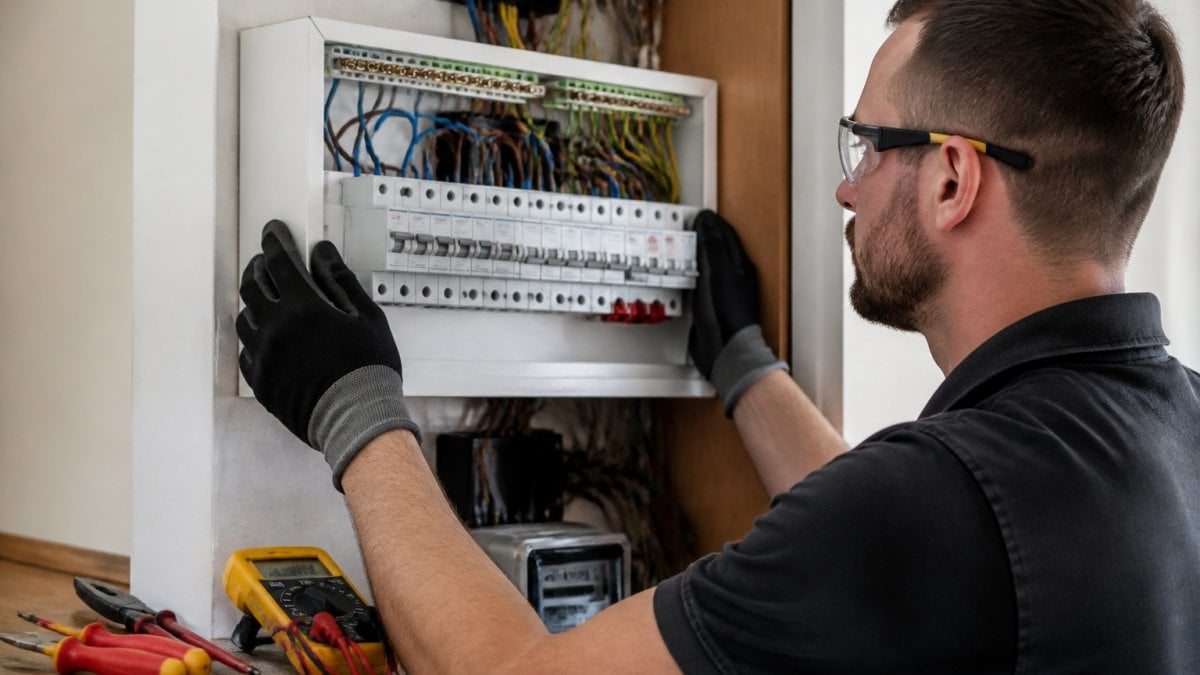

A typical RCD installation starts with a survey and ends with a certificate. The electrician checks the existing board, tests the circuits, isolates the supply, fits the new device or consumer unit, then tests everything before restoring power.
Here is the usual sequence:
- Survey and quote: the electrician inspects the board and circuits, then prices the work
- Isolation: power is safely switched off and the supply locked
- Removal: the old board or device is taken out and the wiring checked
- Installation: the new unit is fitted and circuits are connected in order
- Testing: insulation, polarity, and RCD trip times are measured
- Certification: you receive a certificate confirming the work meets the standard
Expect the power to be off for several hours on a consumer unit change. A straightforward device swap is quicker. At MDS Electrical, we confirm appointment times in advance and provide a written quote before any work starts, so you know the scope and the cost.
Conclusion
The benefits of RCD protection installation are hard to argue with: fewer shocks, lower fire risk, and a property that meets current safety standards. The catch is that the device only works if it is correctly fitted and regularly tested. That is where a qualified electrician earns their keep.
If your board has no RCD, or you cannot remember the last time it was tested, arrange a check. MDS Electrical has over 12 years of experience across domestic and commercial properties, and we provide clear quotes, professional certification, and a reliable service that turns up when we say we will. Request a quote from MDS Electrical and get your protection confirmed by a qualified electrician.
Frequently Asked Questions
What are the main benefits of RCD protection?
RCD protection cuts the power within milliseconds when it detects a fault, which reduces the risk of a fatal electric shock and lowers the chance of an electrical fire starting. It also brings a property closer to the requirements of the Wiring Regulations (BS 7671), which matters for landlords arranging an EICR and for homeowners planning a sale. For older properties with ageing wiring, an RCD adds a layer of safety that a fuse or MCB alone cannot provide.
How does an RCD protect against electric shock?
An RCD monitors the current flowing through the live and neutral conductors. If it detects a difference, even as small as 30 milliamps, it trips and disconnects the supply in a fraction of a second. That speed is what limits the duration of a shock and prevents it from becoming fatal. Standard socket circuits use 30mA RCDs for this reason, while circuits with a lower risk of shock can use higher-rated devices where the regulations allow.
Do all circuits need RCD protection?
Not every circuit needs it, but the RCD installation requirements in BS 7671 are broad. Socket outlets for general use, circuits in bathrooms and kitchens, and cables buried in walls at shallow depth all typically require 30mA protection. Some industrial and commercial circuits can be excluded where a risk assessment supports it. A qualified electrician will check your specific layout before designing the consumer unit, so the answer depends on your property rather than a single rule.
How often should an RCD be tested?
Most manufacturers recommend testing the RCD’s trip button every three months by pressing the test button on the device itself. That checks the mechanism works, but it does not confirm the trip time. A full trip-time test with a calibrated instrument should form part of an EICR, typically every five years for a rented property or every ten years for an owner-occupied home. If the RCD trips frequently without an obvious fault, book a test rather than ignoring it.
